Studio Lagom

The firm, since 2009, exists to challenge the Indian architectural landscape that according to them, is still quite unorganized, where ‘layers of materials’ have ruled over `purity of materials’.

Philosophy

Belief in giving importance to the beauty of each material, by creating the right balance between less and more. The firm believes in creating form that not only follows function, but creates space for lifestyless and cultures.

Client’s brief

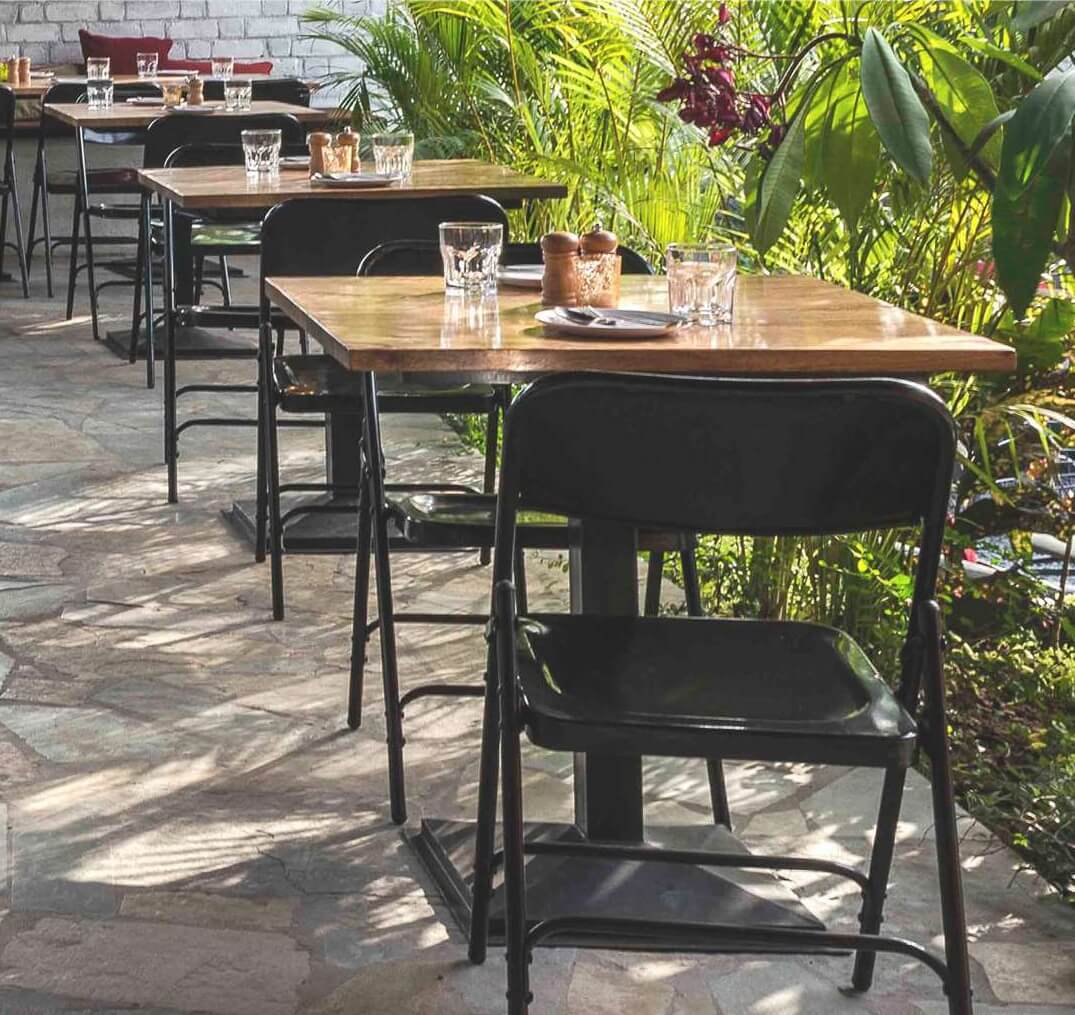

Mr. Harnish Desai, a businessman came with a vision of creating a unique restaurant with a tropical theme. ‘Mere was a constraint of low budget as the land was leased.

Architect’s intake

When the clients approached the architect to design a cafe/restaurant, the design thoughts immediately veered to creating something that the city lacked: a well-designed garden restaurant in the true sense of the word.

Project details

Type: Restaurant/ cafe

Location: Surat, Gujarat

Status: Completed

Plot area: 5000 sq.ft.

Built area: 3500 sq.ft.

Timeline: 06/2017- 03/2018

Cost: INR 55,00,000

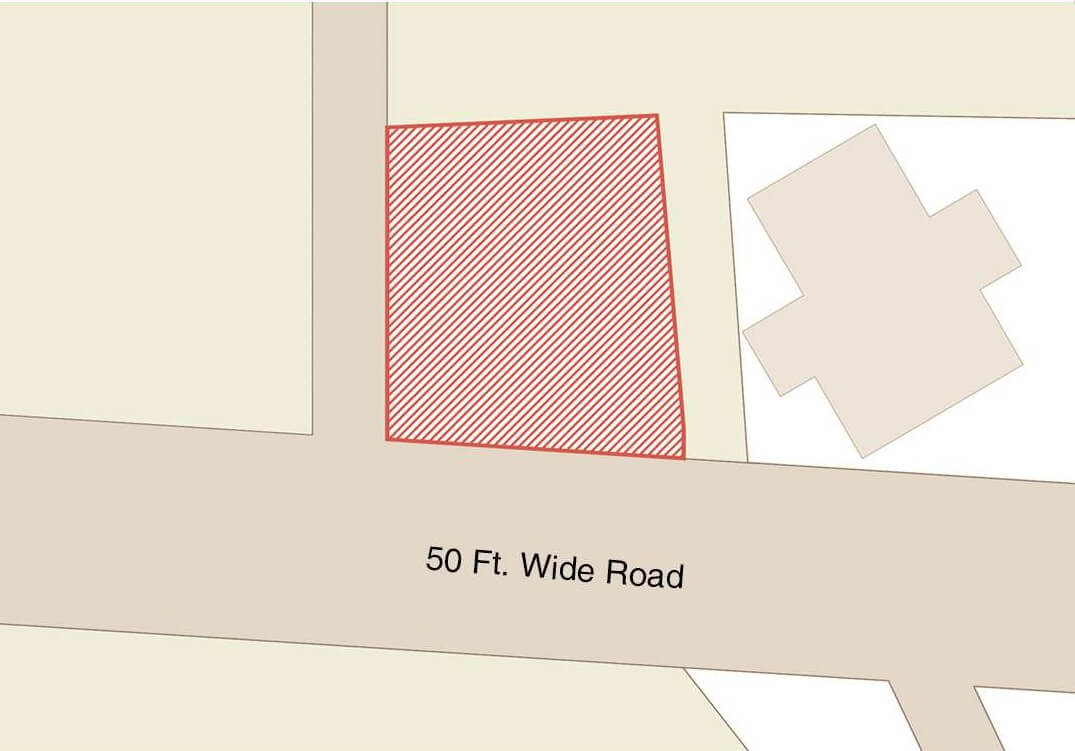

Site Challenges

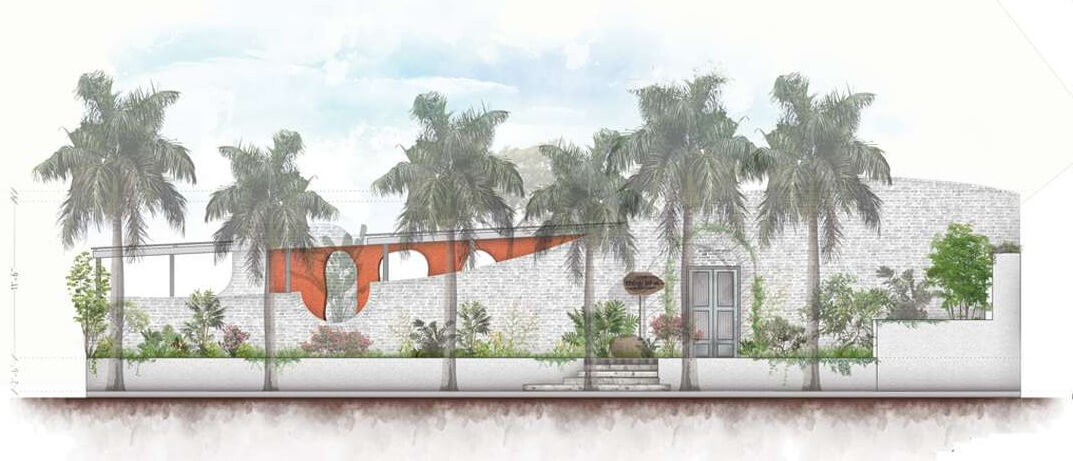

The location was in a quiet by-lane while the restaurant had to have a certain privacy, but the challenge was to `respond’ to the street.

A wide landscaped elevated set-back was created as a transition from the street level to the fly-ash brick masonry wall that marked the ‘boundary’ of the restaurant.

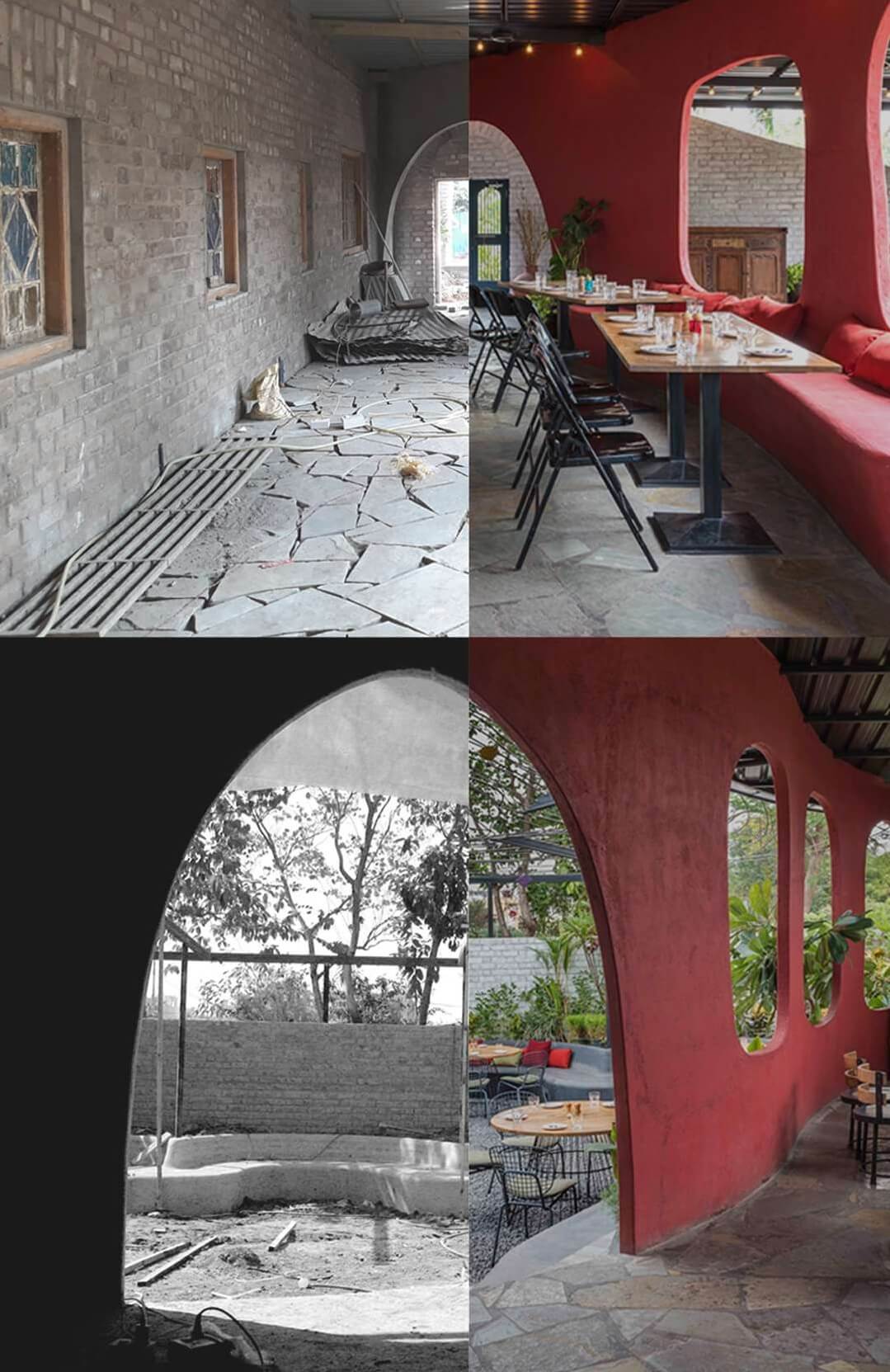

Budgetary Constraints

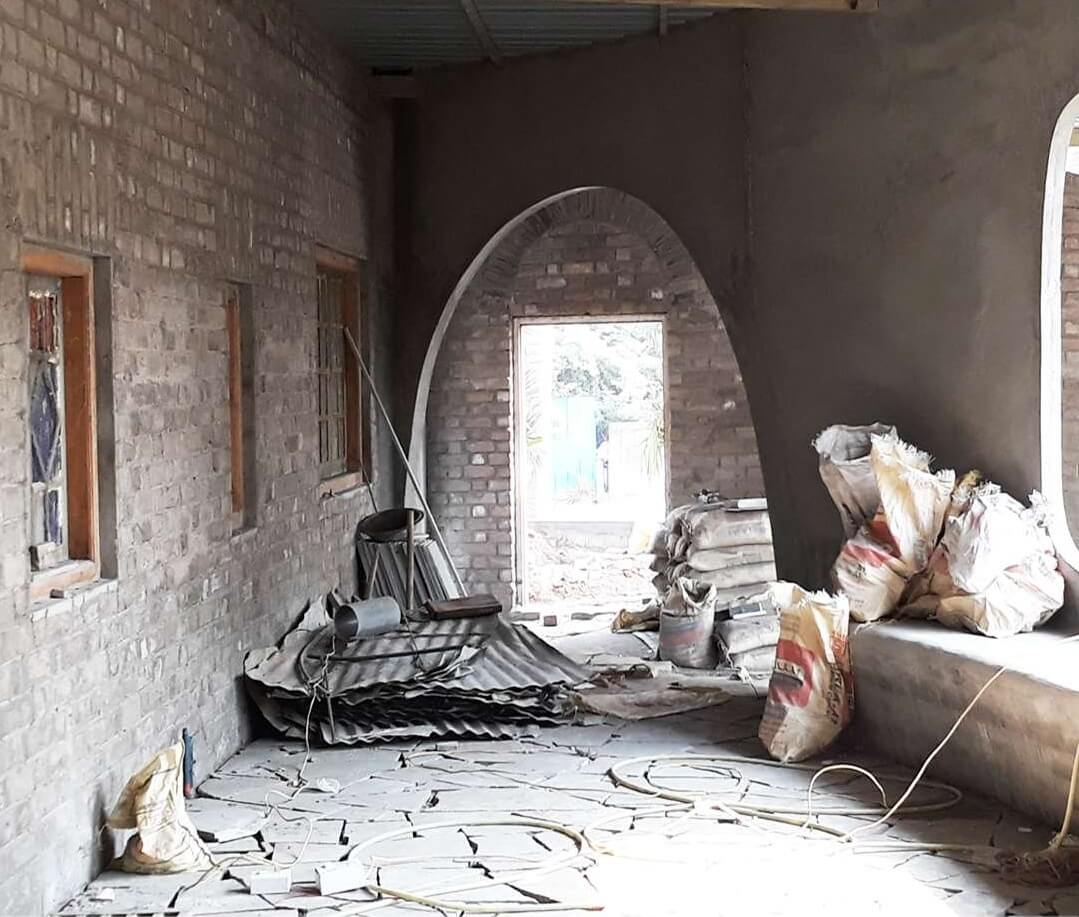

The budget constraint stated by the client, was resolved by using low cost or reused materials.

Outcome

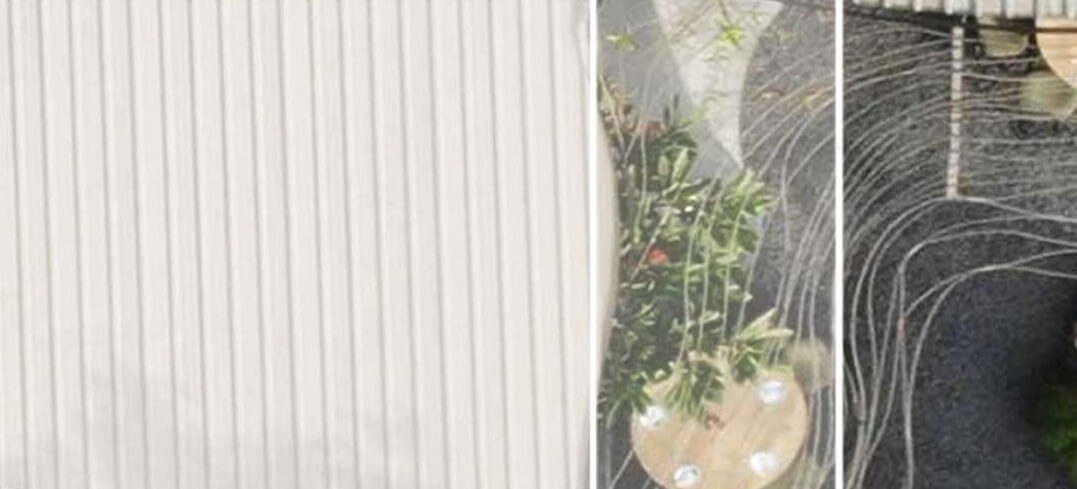

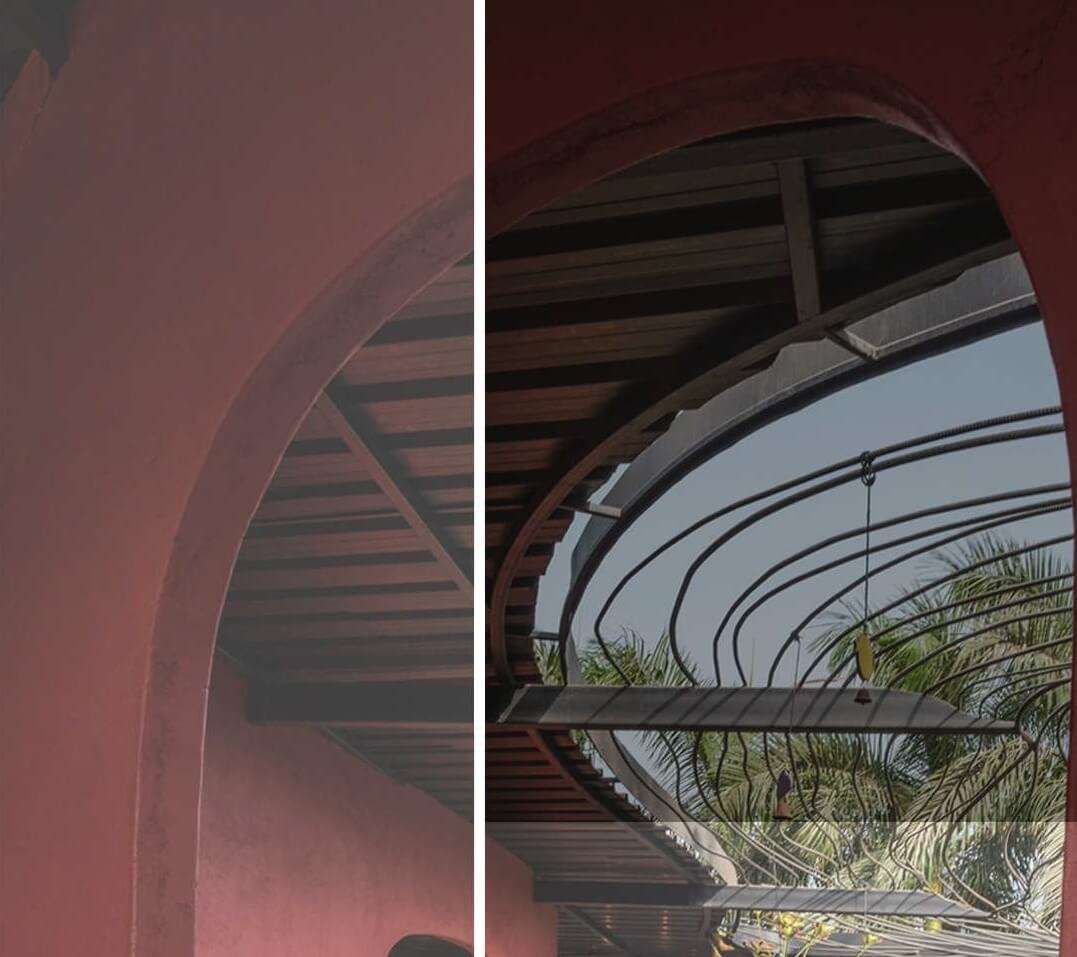

The different project challenges led to the use of corrugated sheet roof, reused iron rods  installation , waste Indian . stone mosaic, fly ash brick Iwall, and more things, all of it creating a beautiful rustic and organic feel, while keeping the built form to the minimum.

Concept

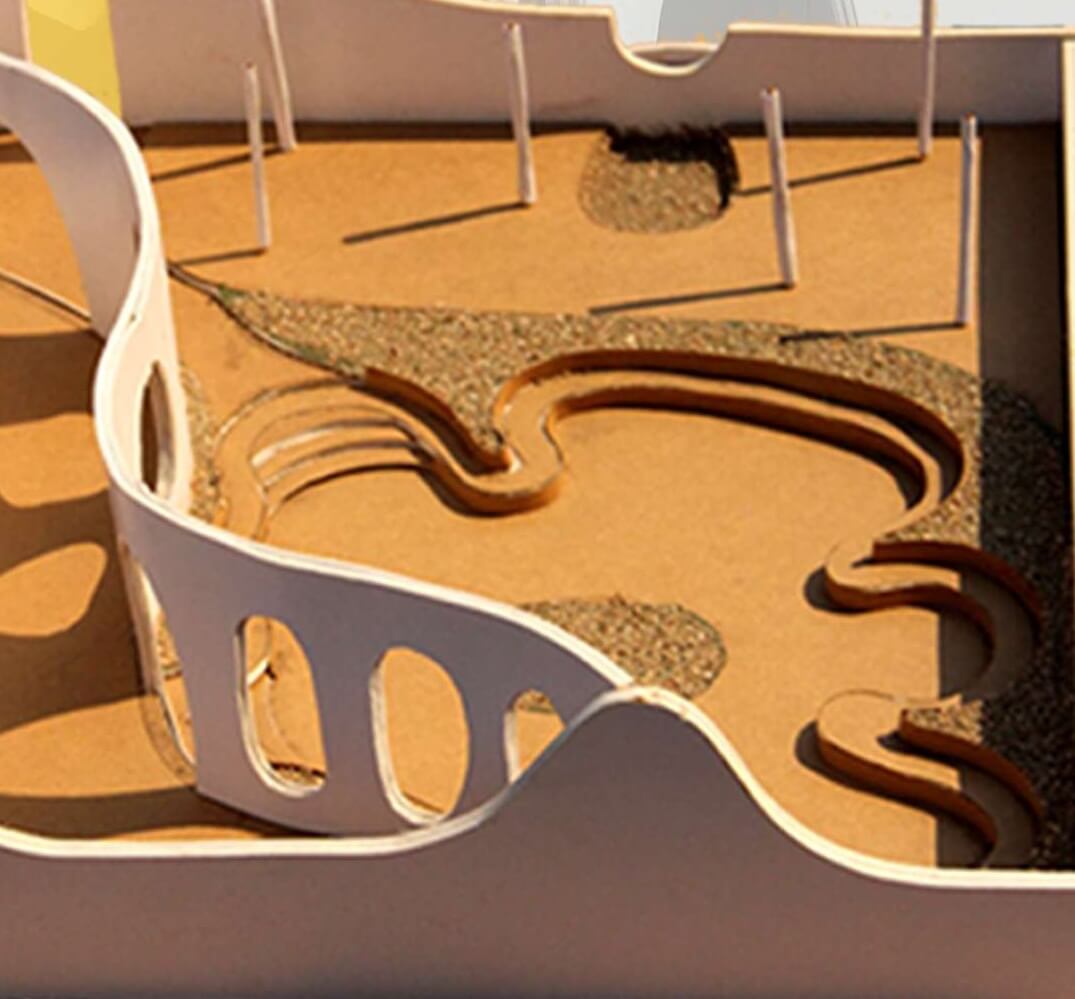

A tropical garden restaurant meant a lot of organic flow and with organic flow comes a lot of curves.

Conceptual design sketches exploring curvilinear forms

This curved form creates a space where people are in open yet can enjoy their personal space.
As the land was leased, a design that kept the built-form to the minimum helped in rationalising the cost.

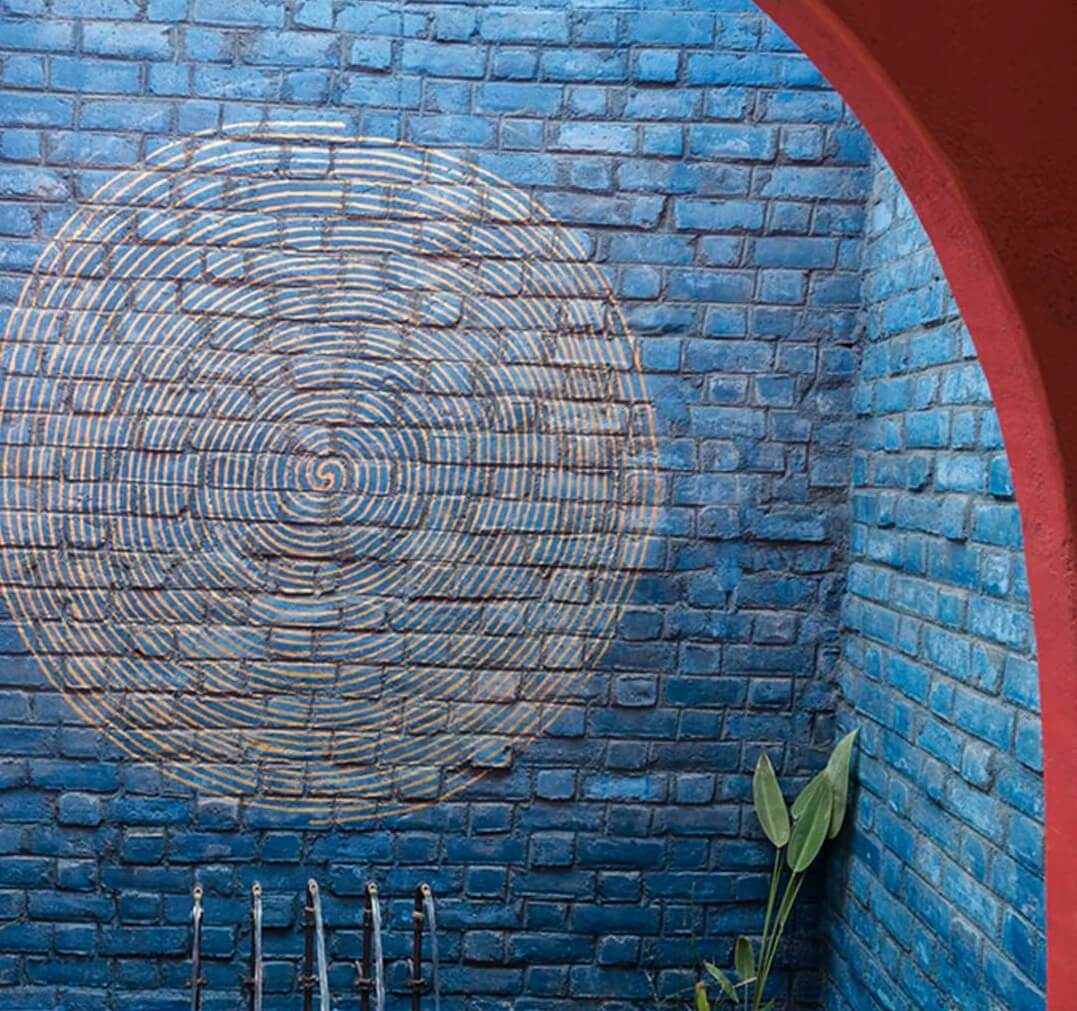

Whorling to Infinity

Artwork Credits – Kruti Sheta-Patel

The spiral takes cues from master artist SH Raza’s iconic Bindu. The idea was to create a ‘pause’ at the entrance of a garden restaurant, something that would make the patrons stop and ponder. frathe waterbody, created with an open-to-sky enclosure, lends aural dimensions to the artwork. the background of the mural borrows its colour from the sky, while the hypnotic spiral – which also bears echoes of spiritual imagery – is rendered in gold.

Innovation with materials

Economic materials and techniques sets a prototype of sustainable development in this typology where usually contemporary lavish indoors overpowers.

Ferrocement and fly ash brick walls

Sustainable, economic and light-weight material.

“Ihis helped in acheiving the desired organic form with minimal construction cost and lesser space consumption.

This lead to minimal footprint of the walls and open courtyard.

Fly ash brick and ferrocemen t used to achieve the organic form

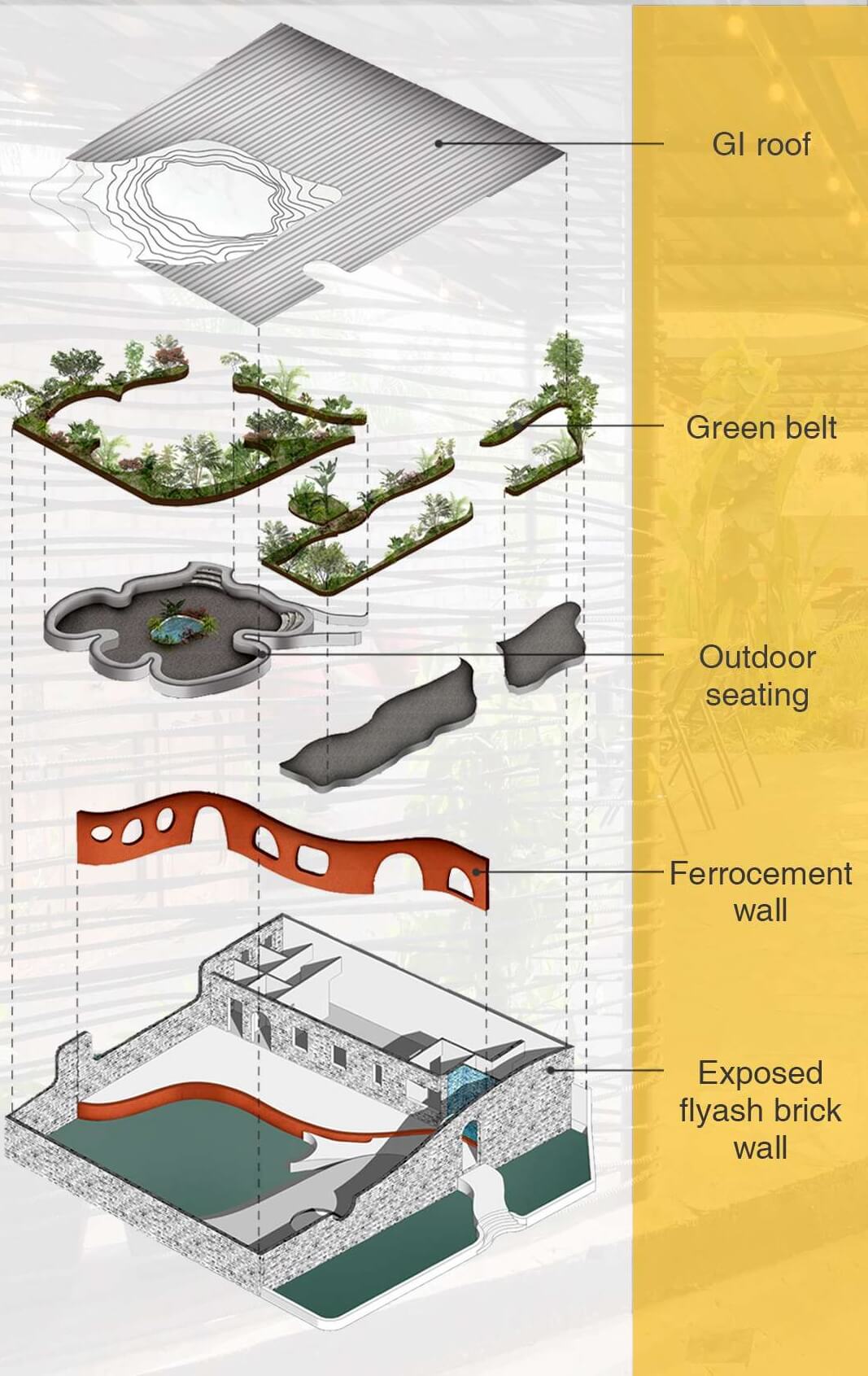

Design Elements

The following design elements combined together constitute to the primary concept of the project.

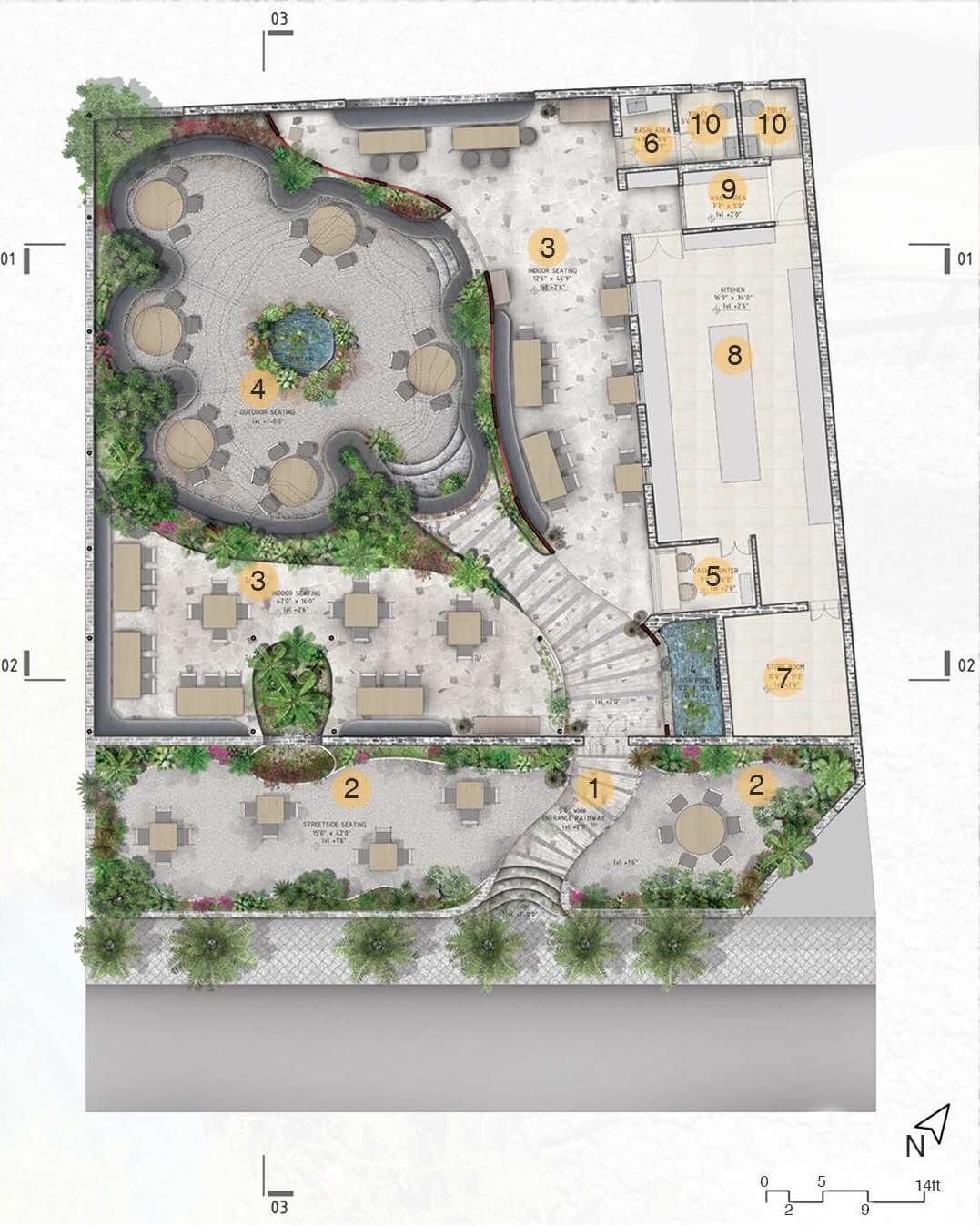

Plan

1. Entrance pathway

2. Streetsoe seating

3. Indoor seating

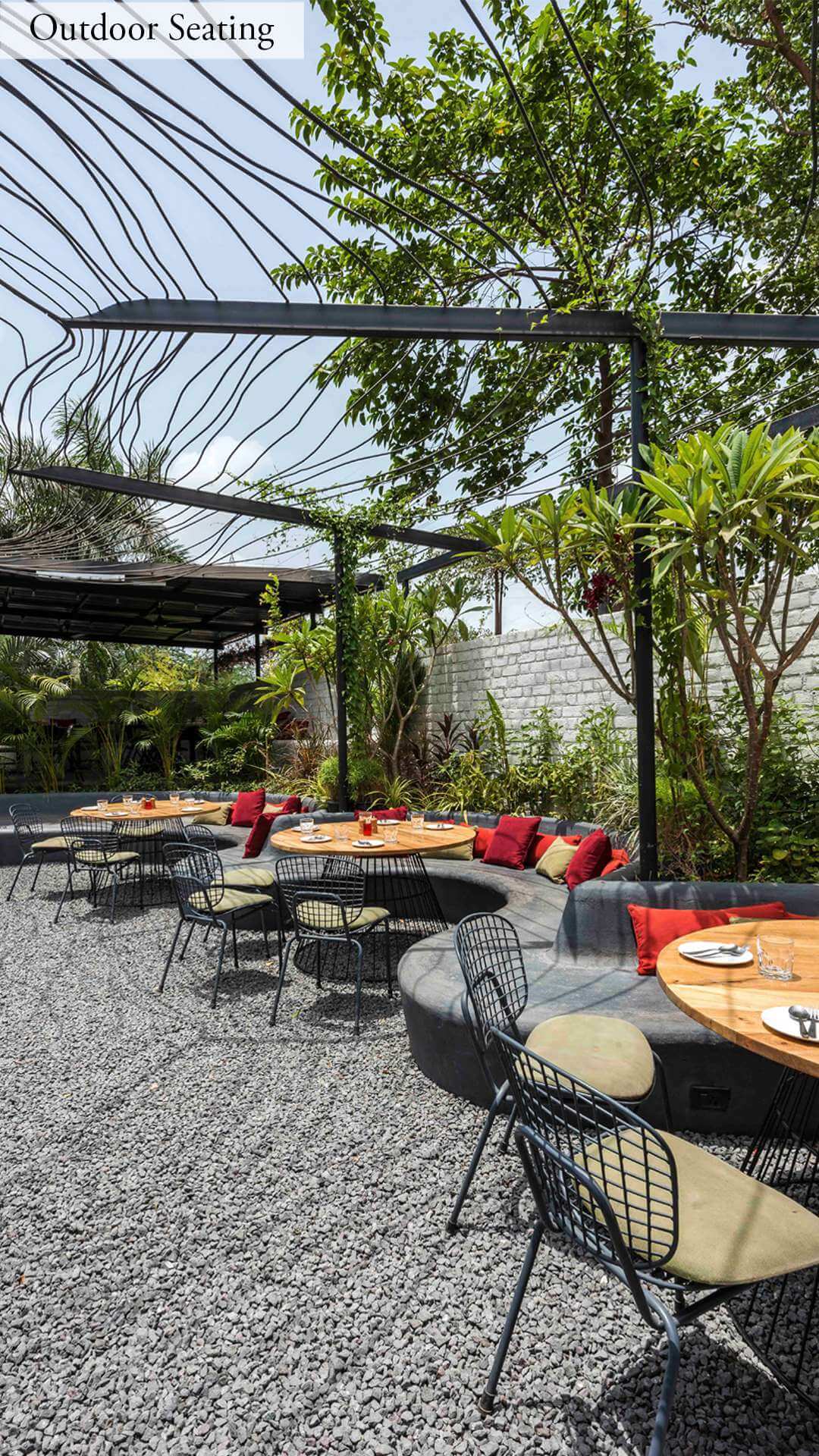

4. Outdoor seating

5. Cash counter

6. Basin area

7. Store room

8. Kitchen

9. Wash area

10. Toilet

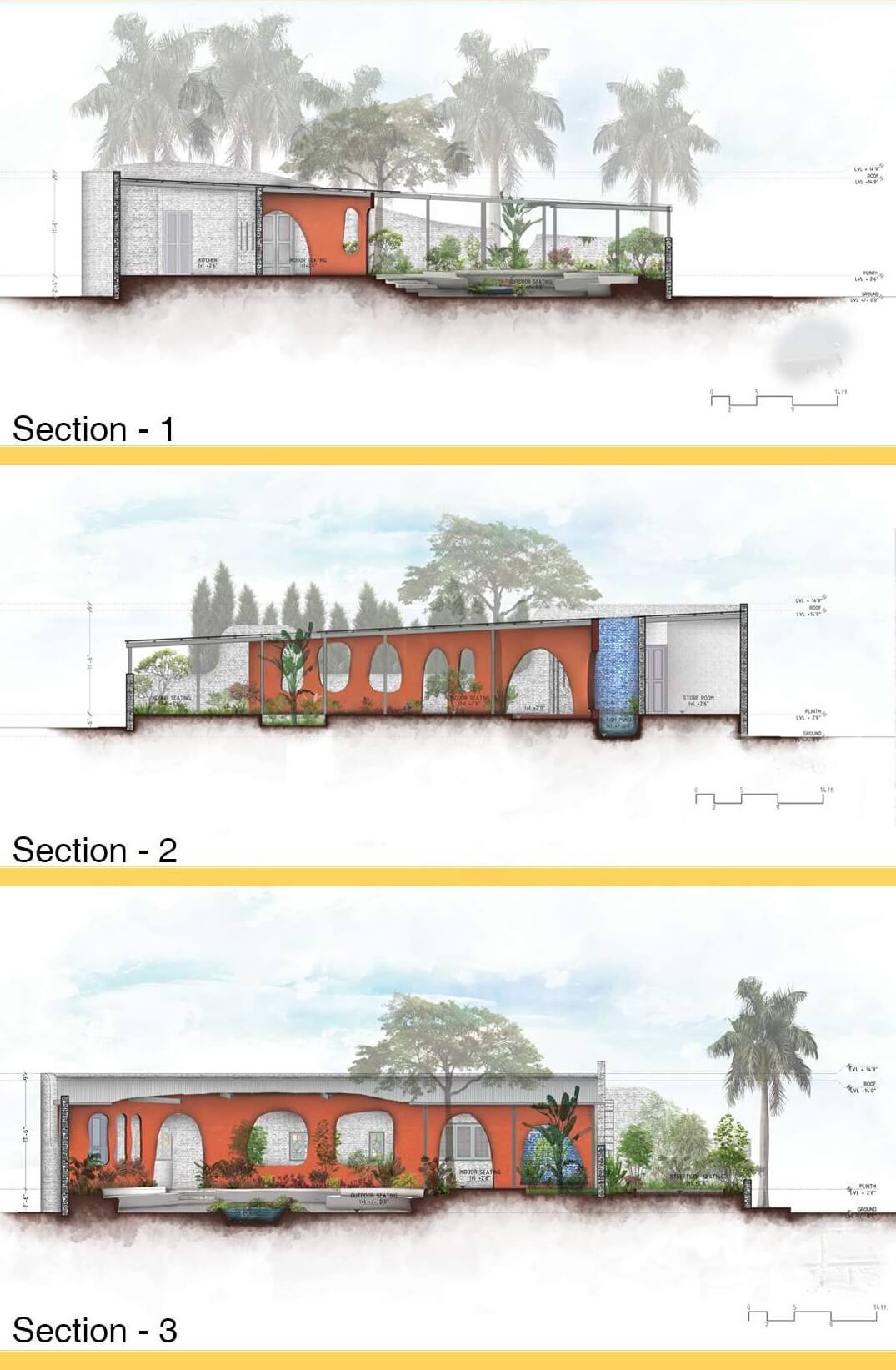

Sections

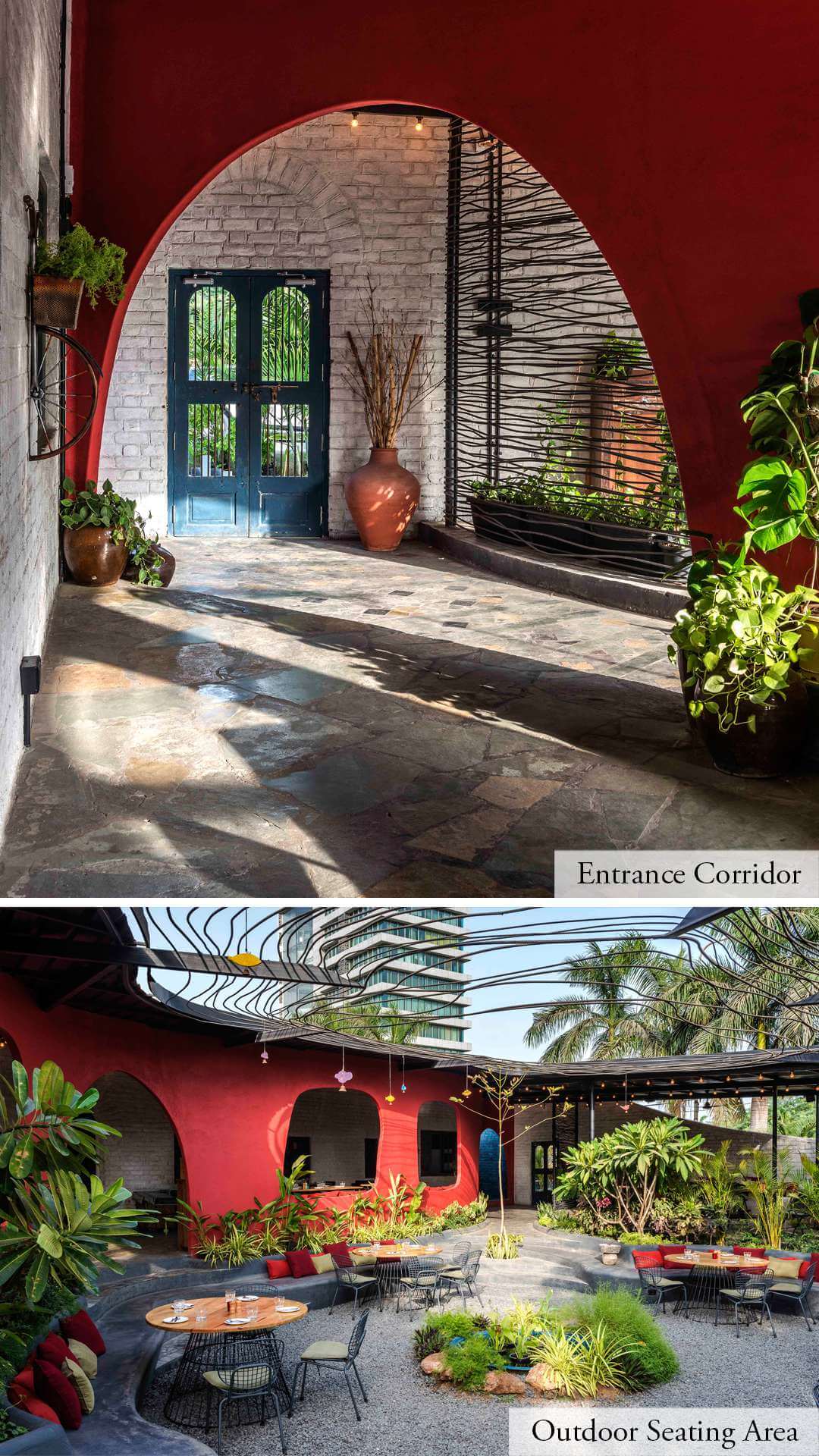

A curved wall with random shaped openings (more screen than a wall) allows the ones seating inside to enjoy nature in full.
